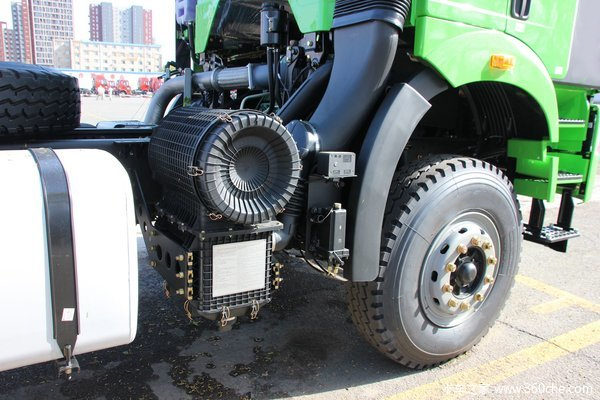

The air filter is a crucial component of a truck engine. It efficiently filters out impurities in the air, safeguarding the normal operation of the engine. Timely and proper maintenance of the air filter not only extends the engine’s service life but also enhances fuel economy. The following is a comprehensive maintenance guide for truck air filters.
I. Maintenance Frequency
Daily Inspection
Prior to each journey, perform a simple visual inspection of the air filter. Check for any damage to the housing and ensure that the connection parts are secure. If any anomalies are detected, they should be addressed promptly.
Regular Replacement
Under normal conditions, the air filter element should be replaced every 10,000 to 20,000 kilometers or every 3 to 6 months (whichever occurs first). However, if the truck frequently operates in a dusty environment, such as construction sites or mines, the replacement cycle should be appropriately shortened, perhaps to once every 5,000 to 10,000 kilometers.
II. Maintenance Methods
Clean the Air Filter Housing
Utilize a clean, damp cloth or compressed air to carefully wipe away the dust and dirt on the surface of the air filter housing. Ensure that no debris accumulates on the housing, as this could affect the filtration efficiency.

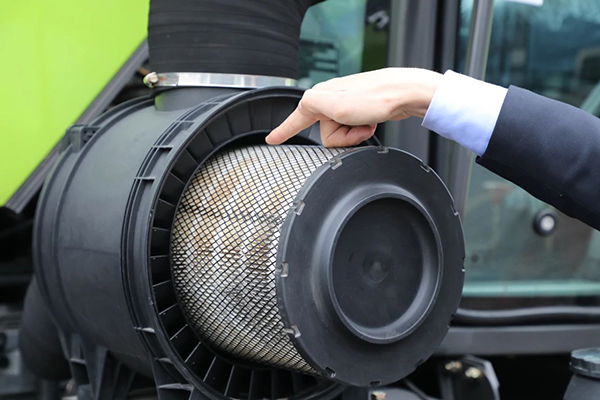

Remove the Filter Element
Carefully extract the filter element in accordance with the air filter’s installation instructions. Exercise caution not to apply excessive force during the removal process to prevent damage to the filter element or other components.
Clean the Filter Element
For reusable paper filter elements, compressed air can be employed to blow the dust out from the inside to the outside of the filter element. The pressure of the compressed air should be maintained at 0.2 to 0.3MPa to avoid damaging the filter element due to excessive pressure. If the filter element is extremely dirty, a specialized filter element cleaner can also be used for cleaning. However, it is essential to operate according to the cleaner’s usage instructions and dry it thoroughly after cleaning. For sponge filter elements, they can be immersed in a special cleaning solution, gently rubbed to remove the dirt, then thoroughly rinsed with clean water, and installed after drying.
Install the New Filter Element or the Cleaned Filter Element
When installing the filter element, ensure that it is correctly installed and has a tight seal to prevent air leakage. After installation, verify that the connection parts of the air filter are firmly attached.
III. Precautions
Select the Appropriate Filter Element
Choose a reliable and standard – compliant air filter element based on the truck’s model and the engine’s specifications. Inferior filter elements may fail to effectively filter out impurities, resulting in engine damage.
Avoid Excessive Cleaning
Although regular cleaning of the filter element is essential, over – cleaning may damage the filter element’s filtering structure and reduce its filtering efficiency. Therefore, it is necessary to operate according to the correct cleaning method and frequency.
Pay Attention to Installation Details
When installing the air filter, ensure that all components are properly installed and tightly connected to prevent dust from directly entering the engine without being filtered.
Replace the Filter Element in a Timely Manner
If it is discovered that the filter element is damaged, deformed, or its filtering effect has significantly deteriorated, a new filter element should be replaced immediately. Do not continue to use it reluctantly to avoid compromising engine performance.
