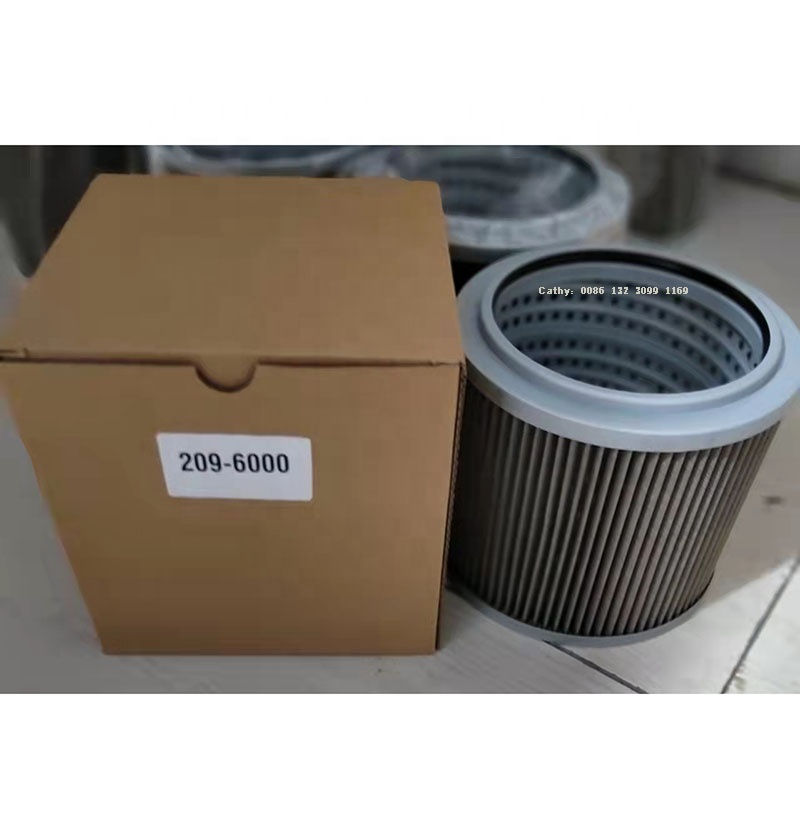

H55121 209-6000 glass fiber stainless steel filter replacement element

H55121 209-6000 glass fiber stainless steel filter replacement element

stainless steel filter element

glass fiber hydraulic filter

replacement hydraulic filter

Size information:

Outer Diameter : 150mm

Height 1 : 136mm

Height 2 : 129mm

Inner Diameter : 112.8mm

Thread size: M10x1.5-6H

1.What does a hydraulic filter do?

Hydraulic filters protect your hydraulic system components from damage due to contamination of oils or other hydraulic fluid in use caused by particles.These particles can cause damage to hydraulic system components because hydraulic oil is easily contaminated.

2.Why use Hydraulic Filters?

Eliminate the presence of foreign particles in hydraulic fluid

Protect the hydraulic system from the dangers of particle contaminants

Improves the overall efficiency and productivity

Compatible with most of the hydraulic system

Low cost for maintenance

Improves the service life of hydraulic system

3.How To Change a Spin-On Hydraulic Filter

When it comes to changing a hydraulic filter, it is important to complete the process the correct way. Failure to do so can cause numerous issues down the road. While the steps are simple to follow, knowing how to change the filter is not enough.

Changing a Hydraulic Filter: Step-by-Step Instructions

There are only a few steps involved with changing a hydraulic filter:

Lock out the machine.

Affix filter wrench or strap wrench to the bottom of the filter.

Turn the wrench to remove the filter.

Once removed, verify the old seal came out completely and clean the filter head

Rub the seal on the new filter with clean oil.

Place the new filter into position, spin on until seal just touches, then complete by tightening 3/4 of a turn.

Unlock the machine and operate.

Examine carefully to verify a good seal is achieved.

The machine must be locked for safety and to prevent equipment damage. When removing the filter, it should not be grabbed from the middle or the top. This will damage the old filter and increase the amount of time it takes to change the new filter.
