Engine diesel fuel filter element FS19605 01030 for SWK 2000/10
Characteristic:
Size
WxHxD-Size: 88x55x88 mm
Inch size: 3 9/16″ x 3 5/8″ x 2 1/8″
Speed-filter part: 30 microns
Filter Media-Filter Media: Filter Paper
Separ filter: 58-01030
Used for EVO10, SWK-2000/10 and their modifications, except gasoline (B) and heating (H)
Made in-Country of Origin: China
Replacement filter element for SEPAR FILTER
Refer to the following part numbers:
ASTRA 134162
ATLAS COPCO 3222311922
BALDWIN BF7912
BOMAG 5713908, 5713908
CASE IH 87409379
DEUTZ 319822, 319822, 1319822, 1319822, 4297812
FLEETGUARD FS19605
Hengst E1030K
HIFI FILTER
JURA FILTRATION SN4000, SN40005V
KNECHT KX332ECO
LIEBHERR 5531837, 7027479, 553183708
MAHLE KS72252022, KS7225202212, KX332ECO
Racor PFF5601
MAN 81125010021 ,81125010022 ,81125010030 ,81125030086
MAN PU911 J8621030
SAKURA SF7922
SEPAR 1030 HV,10030 ,HV0
SF filter SK3943 ,SK3943HNBR ,SK3943V
SURE filter SFR0103FW 14514238
Wirtgen 122648
Vickers 95100E

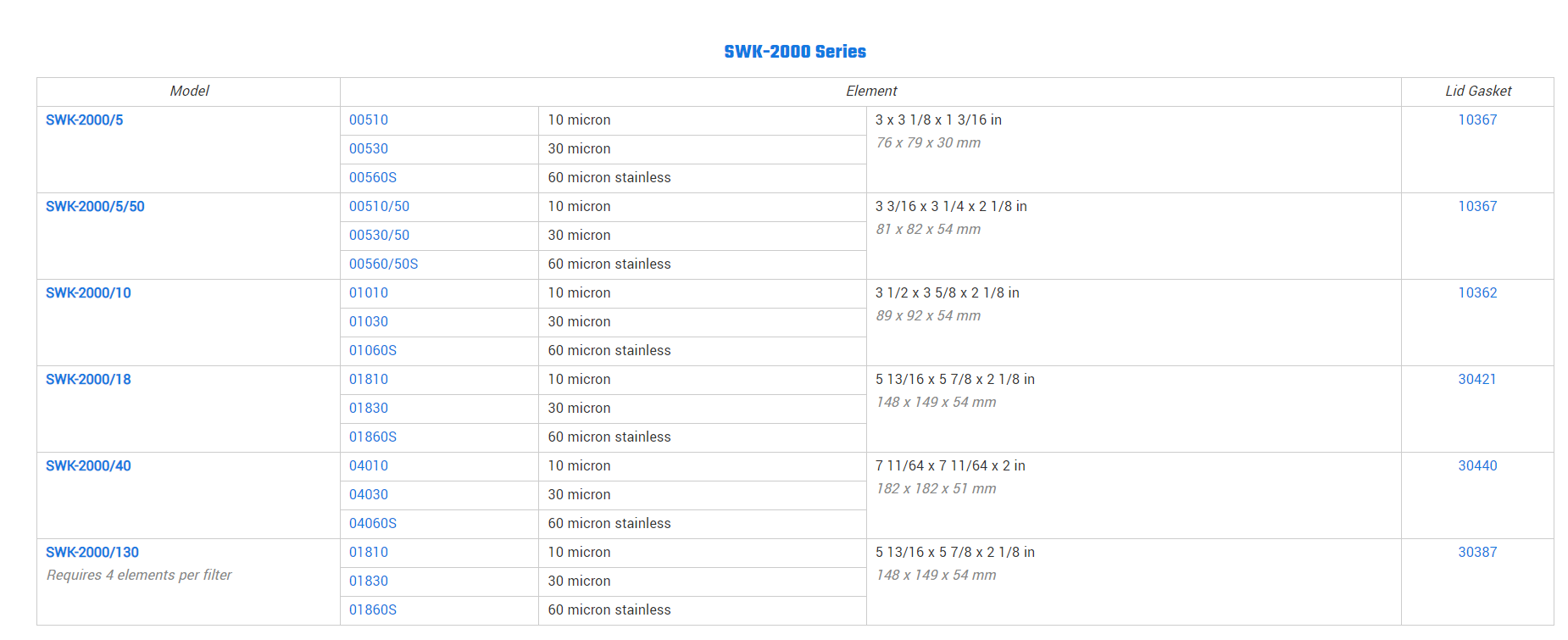

SWK-2000 Series
Frequently Asked Questions
How often do I need to service the SWK-2000?
If the SWK-2000 assembly includes the optional vacuum gauge, the filter must be serviced around 11 inHg depending on the starting gauge reading (varies per installation). You can backflush the filter up to 5 times before replacing the element. For example, if no improvement occurs in the vacuum gauge reading on the 3rd backflush, then element replacement is required at that time.
Which micron do I need?
The SWK-2000 and EVO-10 filters come standard with 30 micron element installed, which is sufficient for most applications. The LKF comes standard with the 10 micron installed. Some engines will specify 10 micron as the requirement. For complete assurance, it is best to verify with your engine manufacturer
Do I need to replace the lid gasket too?
No, the lid gasket does not need to be replaced with every new element–only if it has dried out or cracked over time.
